Quickstart guide for Plotly

This notebook provides a quick introduction to the arcadia_pycolor Python package and how to use it to style Plotly plots so that they comply with the Arcadia style guide.

Install the arcadia_pycolor package

The arcadia_pycolor package can be installed using pip. In a virtual environment of your choice, run the following command in your terminal:

pip install arcadia-pycolor

The package can then be imported in notebooks or scripts using the following command:

import arcadia_pycolor as apc

Set the default Plotly styles

The package provides a function called apc.plotly.setup that sets the default Plotly styles to match the Arcadia style guide. This function only needs to be called once, ideally at the beginning of the notebook or script. The styles it sets will automatically apply to all plots in the notebook or script.

import plotly.express as px
import arcadia_pycolor as apc

# Call the `setup` function once, at the beginning of a notebook or script.
apc.plotly.setup()

# Plotly plots will now use the Arcadia style guide.
fig = px.line(x=[0, 1, 2, 3, 4], y=[3, 1, 4, 1, 5])
fig.show()

A note about the Arcadia fonts

The Arcadia style guide uses the Suisse family of fonts. When apc.plotly.setup is called, it automatically configures Plotly to use these fonts. If they are not installed, Plotly will use its default fonts instead.

The Suisse fonts are proprietary. To install them, please refer to the "brand assets" page on Notion for instructions. Please do not share these fonts outside of Arcadia.

Styling individual plots

Some aspects of the style guide can only be applied to individual plots. The apc.plotly.style_plot function can be used to apply these styles to a single plot. This function takes a Plotly Figure object as input.

import plotly.express as px
import arcadia_pycolor as apc

apc.plotly.setup()

fig = px.line(x=[0, 1, 2, 3, 4], y=[3, 1, 4, 1, 5])
apc.plotly.style_plot(fig, monospaced_axes="all")
fig.show()

The style_plot function can be used to customize the styling of the x- and y-axis tick labels:

• monospaced_axes sets the tick labels of the x- and/or y-axis to a monospaced font.
• categorical_axes adjusts the x- and/or y-axis styles to be more readable when the axis represents a categorical variable.
• colorbar_exists tells the function to style the colorbar, if one exists.

Using Arcadia colors

The Arcadia style guide defines sets of colors called "color palettes" that should be used in all figures. The arcadia_pycolor package provides easy access to both individual colors and to pre-defined palettes and gradients.

Using individual colors

All of the individual named colors listed in the style guide are available as attributes of the main apc module. For example, to create a line plot using the color "rose":

import plotly.express as px
import arcadia_pycolor as apc

apc.plotly.setup()

fig = px.line(x=[0, 1, 2, 3, 4], y=[3, 1, 4, 1, 5])
fig.update_traces(line_color=apc.rose)
apc.plotly.style_plot(fig, monospaced_axes="all")
fig.show()

To visualize a particular color, simply type it in a Jupyter notebook cell:

apc.aegean

When the cell is evaluated, it will output the name and hex code of the color alongside a swatch showing what the color looks like:

Using color palettes

Individual colors are organized into groups called "palettes." The palettes themselves have names and are accessible as attributes of the apc.palettes module. For example, we can rewrite the previous example to use the first color in the "primary" palette:

fig = px.line(x=[0, 1, 2, 3, 4], y=[3, 1, 4, 1, 5])
fig.update_traces(line_color=apc.apc.palettes.primary[0])

To see all of the colors in a palette, evaluate the palette object in a notebook cell:

apc.palettes.primary

This outputs a list of color swatches with the names and hex codes of the colors in the palette:

Using color gradients

The Arcadia style guide also defines continuous color gradients that can be used in plots like heatmaps. These gradients are accessible as attributes of the apc.gradients module.

To use a gradient in a Plotly plot, you can convert it to a Plotly colorscale using the to_plotly_colorscale method. For example, to use the "magma" gradient in a heatmap, check out the heatmap examples.

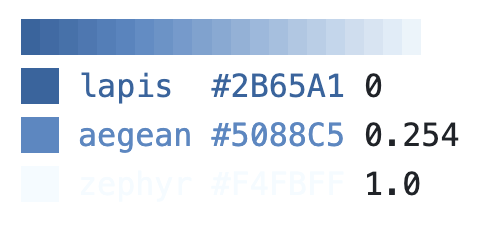

Just like palettes, gradients can be visualized by evaluating a gradient object in a Jupyter notebook cell:

apc.gradients.blues

This outputs a gradient swatch showing the colors in the gradient:
